How To Create A Q&A Chatbot Using NVIDIA Jarvis

How To Create A Q&A Chatbot Using NVIDIA Jarvis

With Wikipedia API Integration To Generate Answers

Introduction

Jarvis brings deep learning to the masses. The multimodal aspect of Jarvis is best understood in the context of where NVIDIA wants to take Jarvis in terms of functionality.

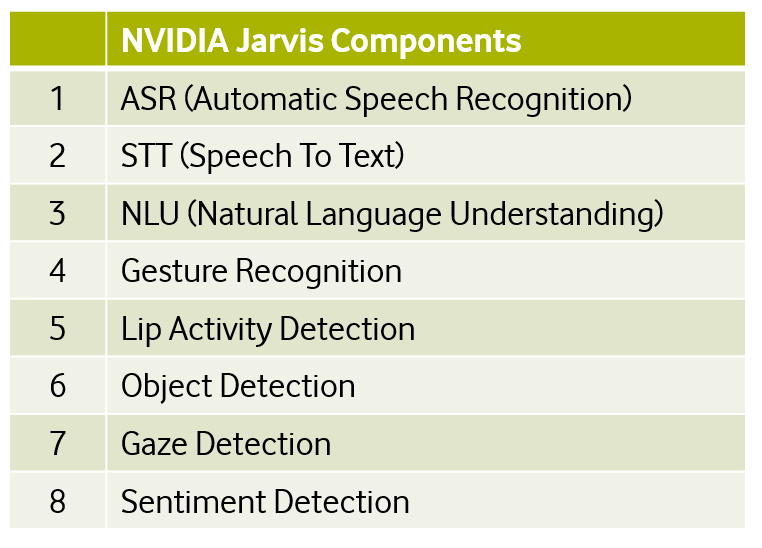

NVIDIA Jarvis Cognitive Components

What is exciting about this collection of functionality, is that Jarvis is poised to become a true Conversational Agent. We communicate as humans not only in voice, but by detecting the gaze of the speaker, lip activity etc.

Another key focus are of Jarvis is transfer learning. There is significant cost saving when it comes to taking the advanced base models of Jarvis and repurposing them for specific uses.

The functionality which is currently available in Jarvis 1.0 Beta includes ASR, STT and NLU. Edge installation is a huge benefit.

Setting Up Your Environment

Access to NVIDA software, Jupyter Notebooks and demo applications are easy and resources are abundant. The only impediment is access to a NVIDIA GPU based on the Turing or Volta architecture.

NVIDA Jarvis Notebooks

To get you started, NVIDIA has quite a few Jupyter Notebook examples available which you can use to step through. These comprise of different speech implementations, including speech to text, text to speech, named entities, intent & slot detection and more.

Wikipedia Question Answer Functionality

On to the Wikipedia Question and Answer notebook example…

First, you need to cd into the installation directory of Jarvis…

cd jarvis_quickstart_v1.0.0-b.1

Then, to launch the Jarvis services, run this command…

bash jarvis_start.sh

Start a container with sample clients for each service…

bash jarvis_start_client.sh

Lastly, from the command line, start a Jupyter Notebook instance and access it from your local machine.

jupyter notebook --ip=0.0.0.0 --allow-root --notebook-dir=/work/notebooks

You will need to make use of SSH tunneling to access the notebook instance from your browser remotely.

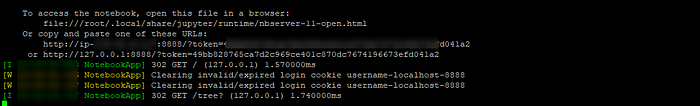

A successfully launched Jupyter Notebook

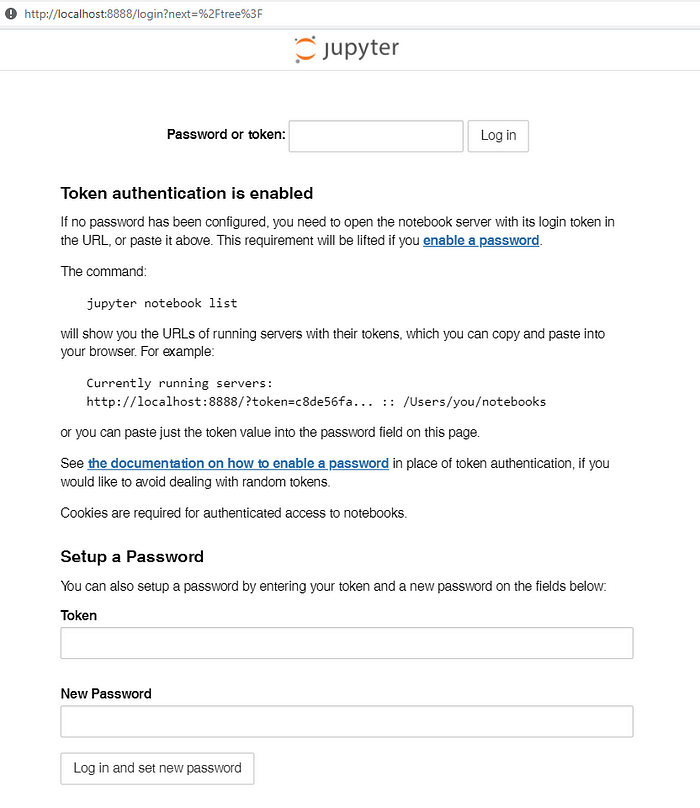

Seeing this screen means you have successfully accessed the Jupyter Notebook. Enter the token which was presented when you launched the notebook from the command line.

Seeing this screen means you have successfully accessed the Jupyter Notebook.

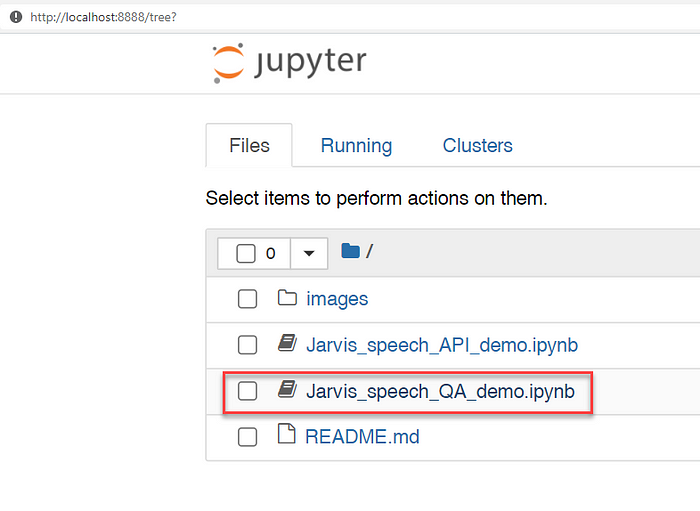

And navigate to the Jarvis Speech QA demo folder…

You will see there are more demo applications available, click on Speech QA.

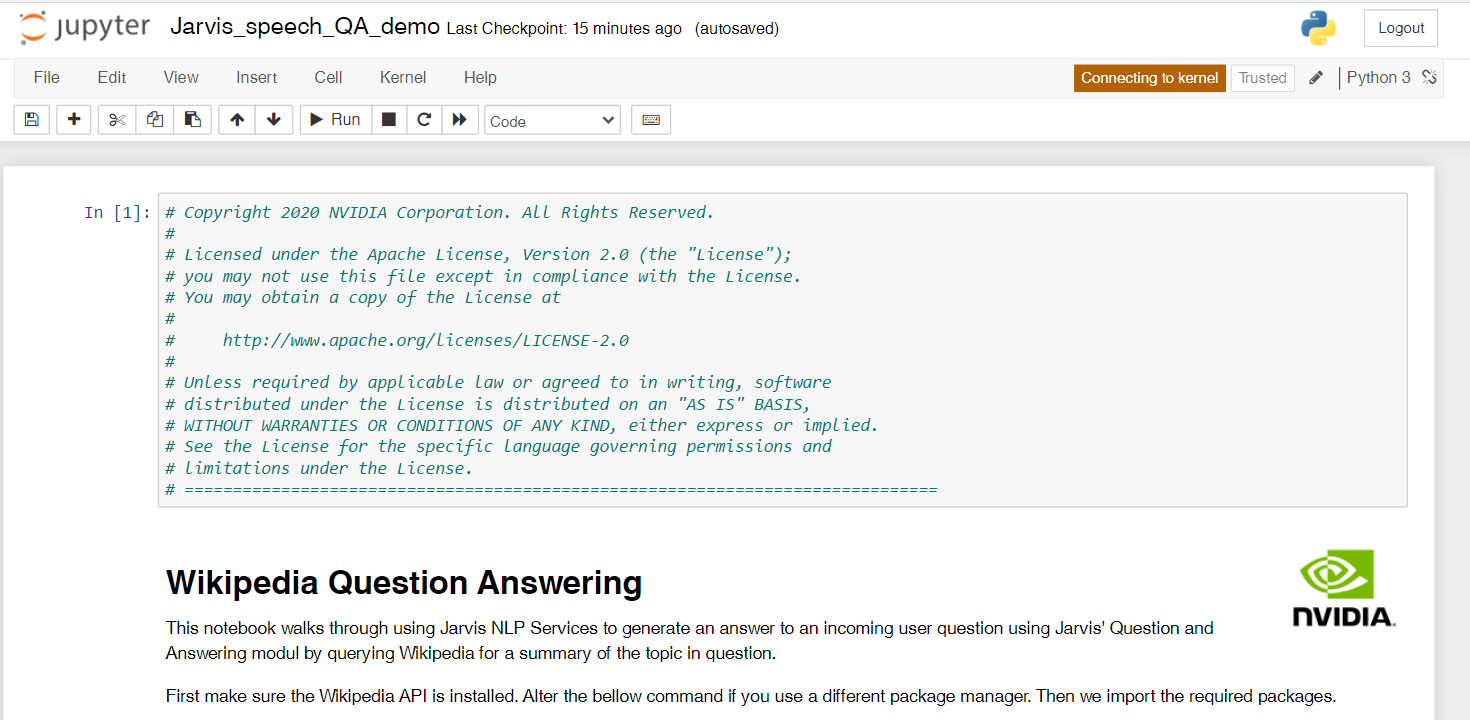

This is the start of the Wikipedia Question Answering notebook. You can click on Run and step through the application without making any changes or configuration updates.

The start of the Wikipedia Question Answering notebook

The input and output of this note book is text based. Here is an example of a query and answer.

Query: What is speech recognition?Answer: an interdisciplinary subfield of computer science and computational linguistics that develops methodologies and technologies that enable the recognition and translation of spoken language into text by computers.

Looking At Some Details

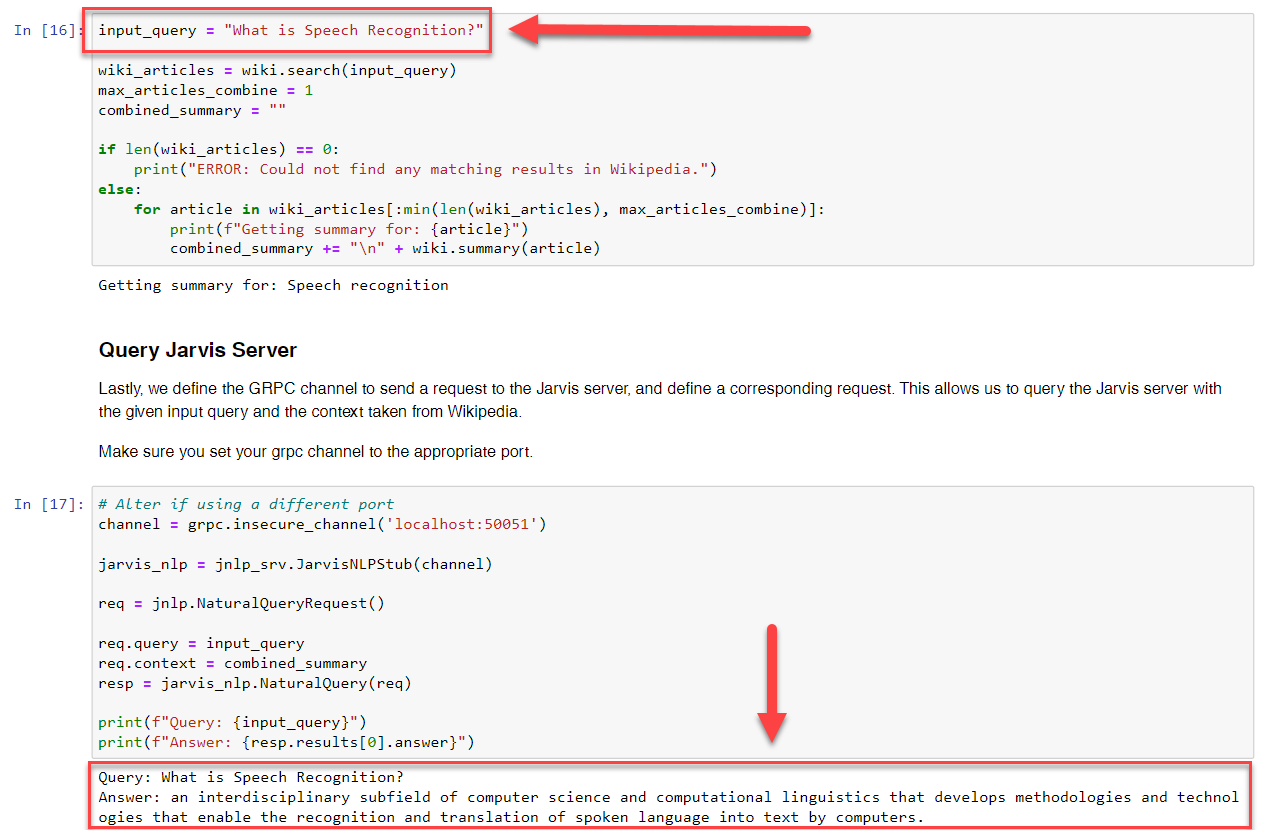

This shows how you can update the Jupyter notebook to ask Wikipedia a different question and where the answer or output is printed. Just take note that if your question is too ambiguous, the answer will not be presented as neatly, and the disambiguation options will be shown.

I also experimented with the max_articles_combine parameter by setting it to “1” instead of the default “3”.

Showing where you can change your question, re-run the code and get a different output.

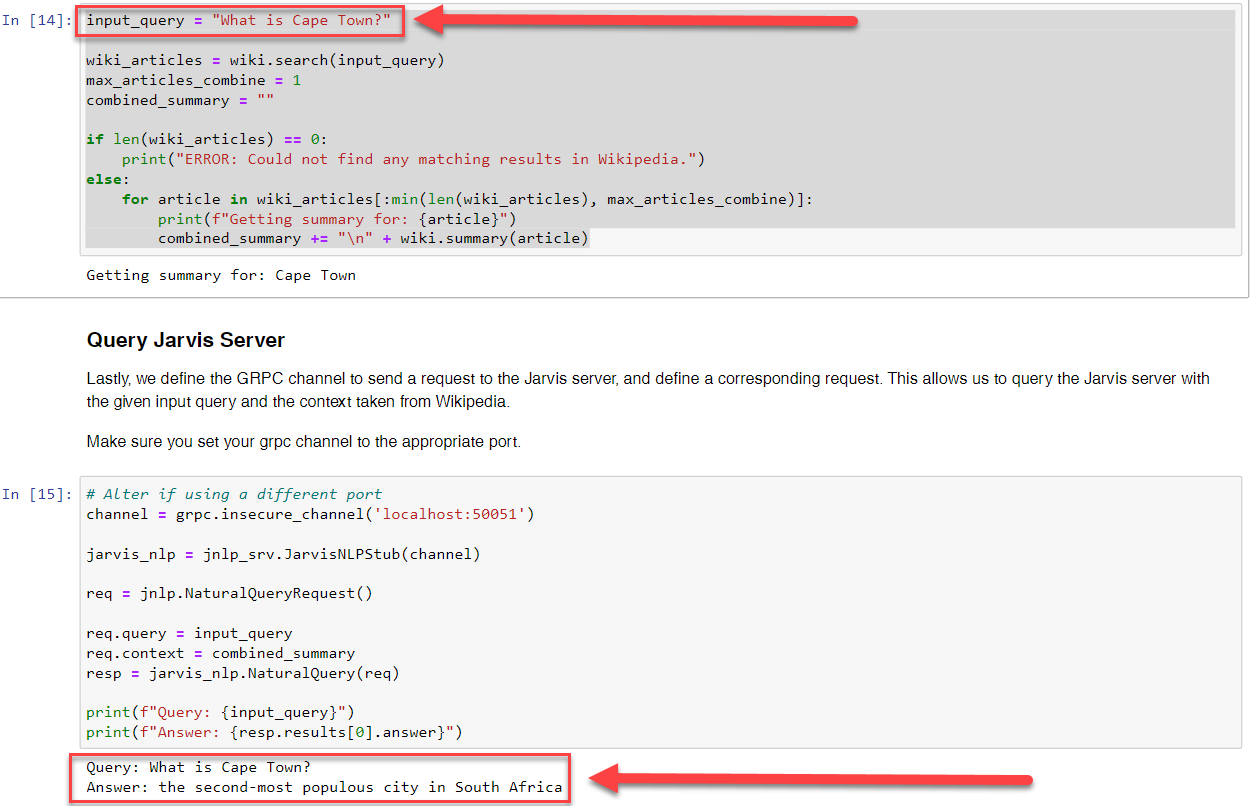

The last example is where the input query is changed to “What is Cape Town?”, and a summary is returned from Wikipedia for the named entity Cape Town.

The input query is changed and the response is shown below.

Speed of execution is impressive and the possible implementations of such functionality is limitless.

Conclusion

My first thought was that getting past the point of an own installation and running the demos would be very daunting…seeing this is a NVIDA and deep learning environment.

But on the contrary, getting to grips with Jarvis on a demo application level was straight forward when following the documentation. After running this basic demo voicebot, what are the next steps?

The voicebot where Rasa integration to Jarvis is performed is a step up in complexity and a logic next step. Also perusing the Jupyter Notebooks provide good examples on how to interact with API’s.
