The Importance Of Prototyping: NVIDIA Riva Virtual Assistant Application

You Will Learn A Lot By Installing & Getting The Demo To Run…


If you are deeply and truly curious, you are someone who likes to understand, and likes to get something working by creating your own environment and self-installing

Reading documentation, guides and tutorials do lend some degree of insight.

But mastery starts with creating an environment, this might be virtual or physical hardware. Then setting up the development and runtime environment, and running at least a demonstration application.

Start with a basic application and grow it, with iterations building on each other. (Image Source)

Getting stuck at the point of reading, really creates a false sense of mastery and understanding. It is only once you start building the environment and getting demo applications to run, where you learn by doing.

When I got access to the NVIDIA Riva framework, I really wanted to get to grips with the environment. It is easy to be overwhelmed when getting started with an environment like Riva. There are often mental barriers when confronted with deep learning and using an astute environment like NVIDIA.

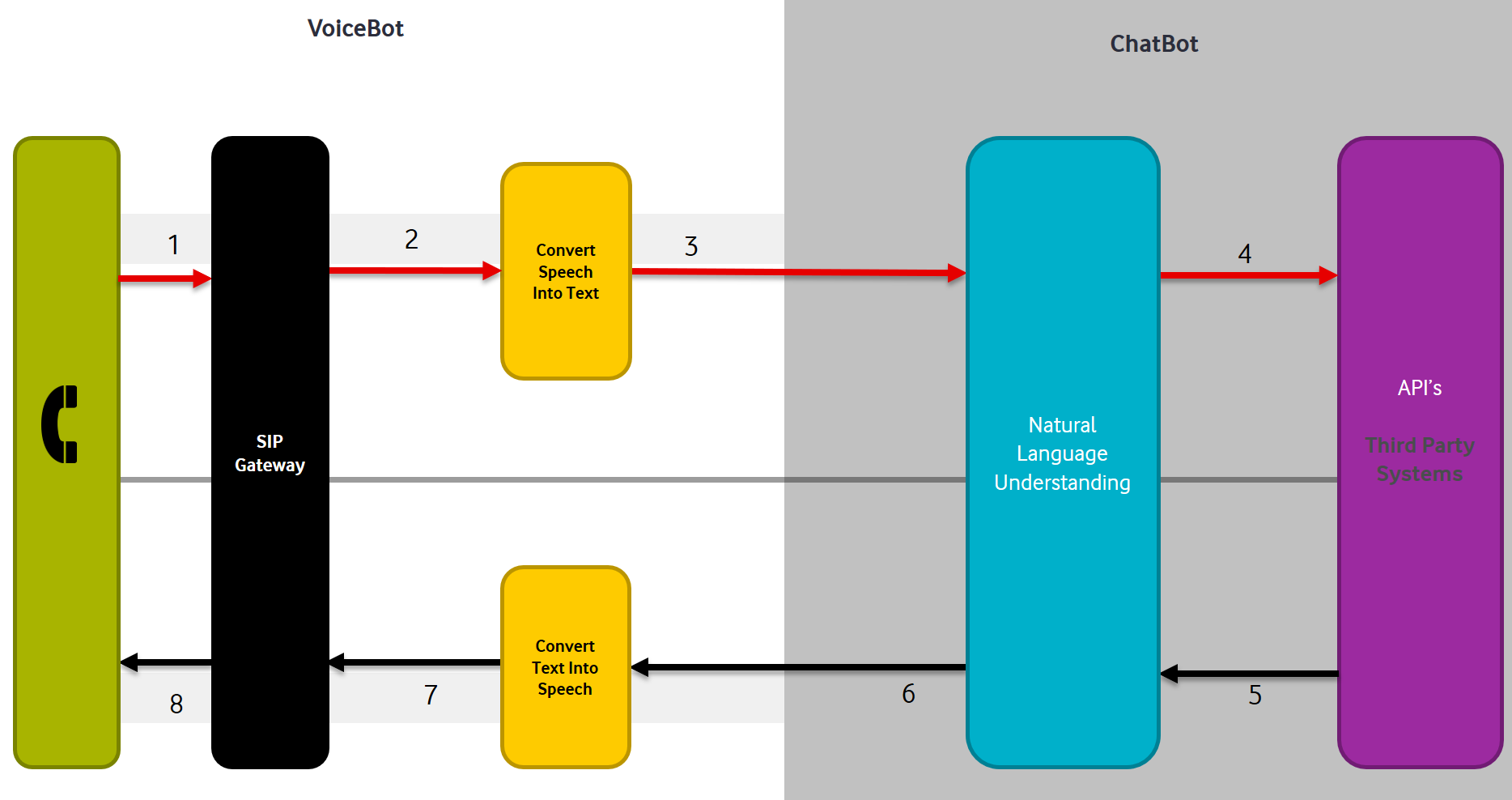

Virtual Voice Assistant (Voicebot) in its most basic architecture.

Riva brings deep learning to the masses, and this article is not a tutorial, but rather a guide on how to:

  • Start as small and simple as possible.
  • Become familiar with the environment, to some extend at least.
  • And spiral your prototype outwards with measured iterations from an initial prototype with increasing functionality and complexity.

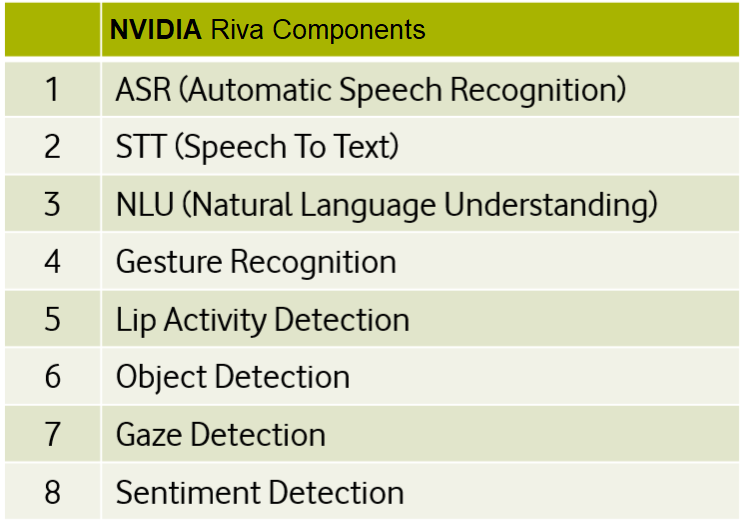

NVIDIA Riva Cognitive Components

The multimodal aspect of Riva is best understood in the context of where NVIDIA wants to take Riva in terms of functionality.

What is exciting about this collection of functionality, is that Riva is poised to become a true Conversational Agent.

We communicate as humans not only in voice, but by detecting the gaze of the speaker, lip activity etc.

Another key focus are of Riva is transfer learning. There is significant cost saving when it comes to taking the advanced base models of Riva and repurposing them for specific uses.

NVIDIA NGC Catalog RIVA Resources

The functionality which is currently available in Riva includes ASR, STT and NLU.

Virtual Voice Assistant

This Virtual Assistant sample application demonstrates how to use Riva AI Services, specifically ASR, NLP, and TTS, to build a simple but complete conversational AI application.

Startup view of the voicebot

It demonstrates receiving input via speech from the user, interpreting the query via intent recognition and slot filling approach, compiling a response, and speaking this back to the user in a natural voice.

Read more about the installation process here.

To install and run the Riva Voicebot demo, start your Riva services:

cd riva_quickstart_v1.4.0-beta

Download the samples image from NGC.

docker pull

Run the service within a Docker container.

docker run  -it --rm -p 8009:8009 /bin/bash

Within this directory…

cd samples/virtual-assistant

Edit with the right Riva IP, hosting port and your weatherstack API access key (from Then, start the server.

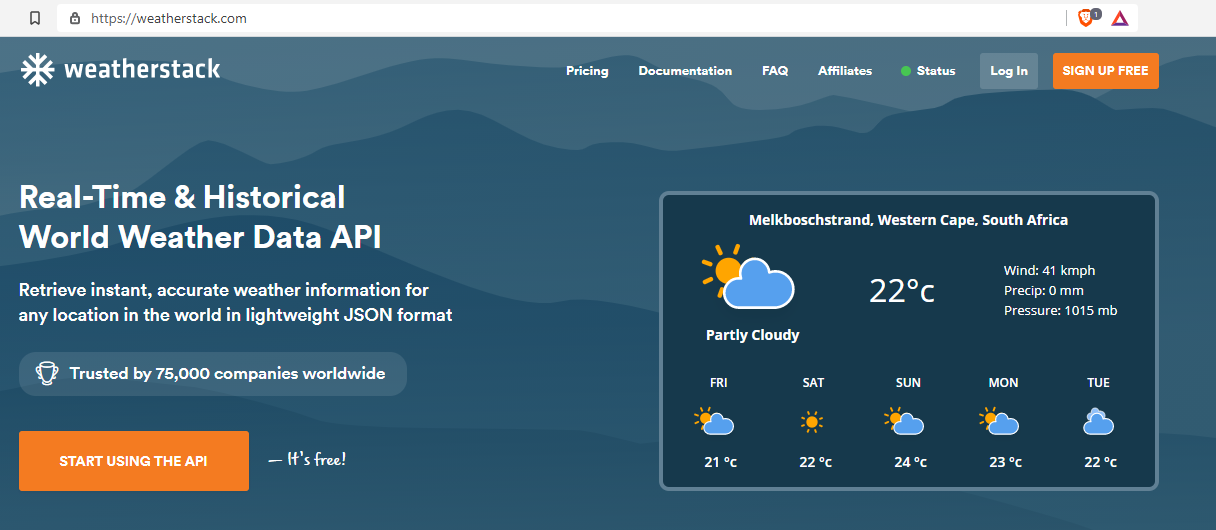

Getting your weatherstack API, on the free tier…

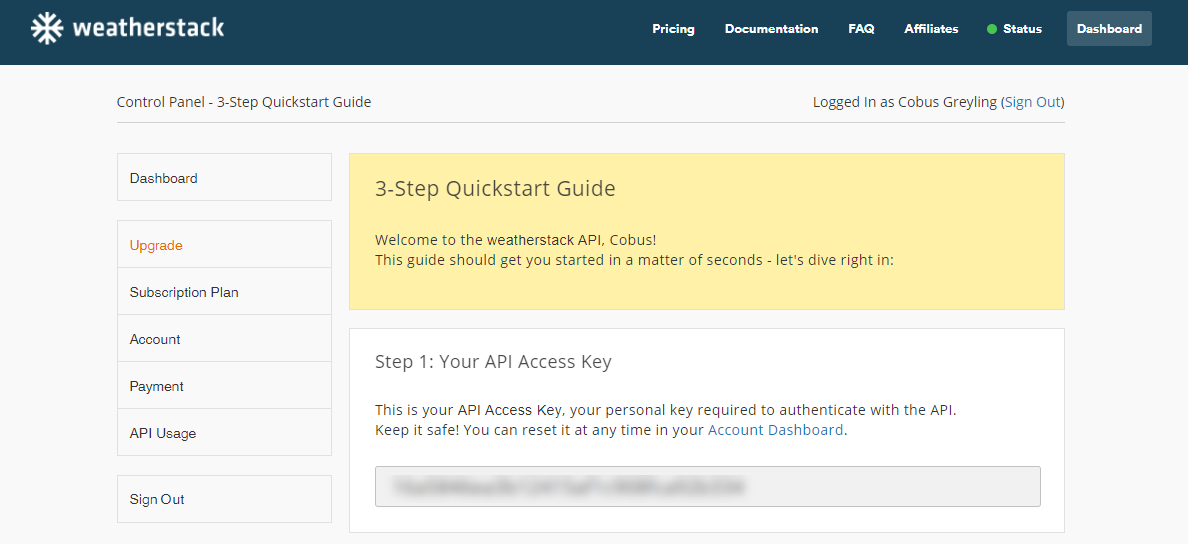

Getting your API Access Key…

Get Your API Access key and update

Start the service…

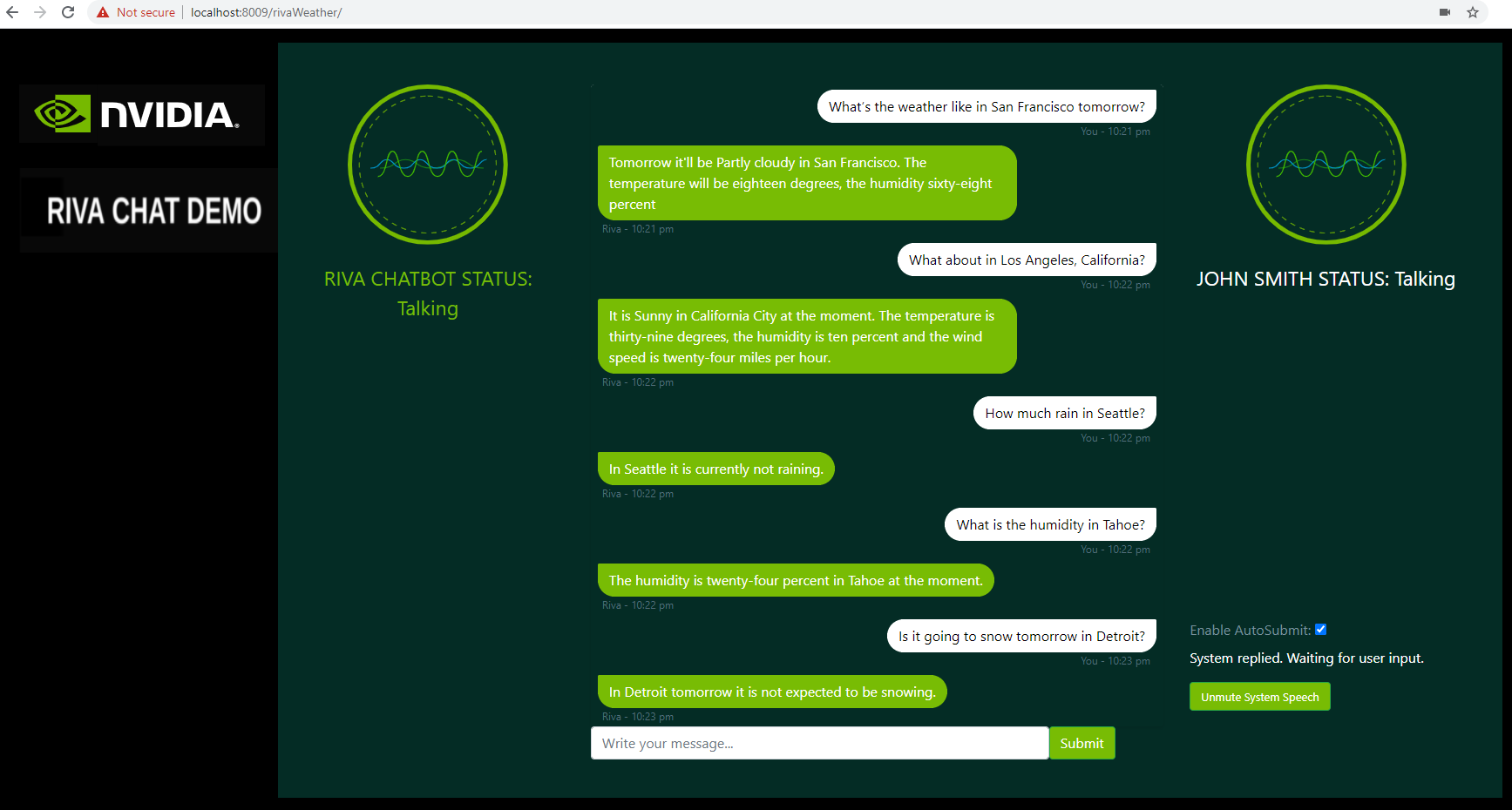

Below you can see the NVIDIA Riva weather bot accessible on the url

Again, you will have to setup to SSH tunneling from your virtual machine. Read about that here.

NVIDIA Riva chatbot & Voicebot Demo

To take a closer look at example code for ASR, TTS and NLU take a look at the Jupyter Notebook examples…


My first thought was that getting past the point of an own installation and running the demos would be very daunting…seeing this is NVIDA and deep learning etc.

But on the contrary, getting to grips with Riva on a demo application level was straight forward when following the documentation. After running this basic demo voicebot, what are the next steps?

The voicebot where Rasa integration to Riva is performed is a step up in complexity and a logic next step. Also perusing the Jupyter Notebooks provide good examples on how to interact with API’s.
